Rotary Kiln-Fote Machinery

Brief Introduction

The cement kiln is mainly used for calcining of cement clinker. There are dry and wet types. The metallurgy industry and ironworks for lean iron ore, chromium ore, and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in the refractory material industry: calcimine of calotte and aluminum hydroxide in aluminum manufacturer, claiming of chrome sand ore and chrome powder ore in a chemical plant. The lime kiln (active lime kiln) is used for roasting the active lime which is used in steel works and ferroalloy works, and calcined dolomite.

Working Principle

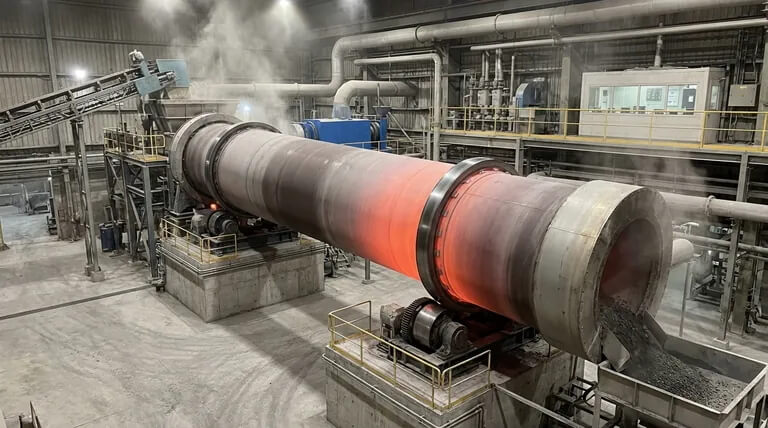

The rotary kiln is a cylindrical body with a certain inclination, and the inclination is 3% to 3.5%. The rotation of the kiln is used to promote the mixing of the material in the rotary kiln, and the materials are mixed and contacted for the reaction. The kiln head coal combustion produces a large amount of heat, and the heat is transmitted to the material by means of flame radiation, convection of hot gas, and kiln brick. The material moves forward in the kiln depending on the inclination of the kiln cylinder and the rotation of the kiln.

Learn More

Advantages

The axial movement of the cylinder is controllable

The cylinder of the rotary kiln is made of high-quality killed steel plate, and the customer can flexibly control the axial movement of the cylinder.
01
Flexible speed

The transmission rotates the cylinder at a required rotational speed through a ring gear provided in the middle of the cylinder.
02
Easy installation and maintenance

The larger rotary kiln is equipped with an auxiliary transmission that rotates the cylinder at a very low speed to meet installation and maintenance needs.
03
Good sealing performance

In order to prevent cold air from entering and flue gas dust from overflowing the cylinder, reliable kiln tail and kiln head sealing devices are provided at the feeding end and the discharging end of the cylinder.
04

Cases and Price

Our Rotary Kiln has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Product Specification （m）	Capacity （t/d）	Rotation speed （r/min）
Φ2.5×40	180	0.44-2.44
Φ2.5×50	200	0.62-1.86
Φ2.5×54	280	0.48-1.45
Φ2.7×42	320	0.10-1.52
Φ2.8×44	450	0.437-2.18
Φ3.0×45	500	0.5-2.47
Φ3.0×48	700	0.6-3.48
Φ3.0×60	800	0.3-2
Φ3.2×50	1000	0.6-3
Φ3.3×52	1300	0.266-2.66
Φ3.5×54	1500	0.55-3.4
Φ3.6×70	1800	0.25-1.25
Φ4.0×56	2300	0.41-4.07
Φ4.0×60	2500	0.396-3.96
Φ4.2×60	2750	0.41-4.07
Φ4.3×60	3200	0.396-3.96
Φ4.5×66	4000	0.41-4.1
Φ4.7×74	4500	0.35-4
Φ4.8×74	5000	0.396-3.96
Φ5.0×74	6000	0.35-4
Φ5.6×87	8000	Max4.23
Φ6.0×95	10000	Max5

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.

If you have any doubts about products, Please contact us, we will reply to you within 24 hours/provide you with the latest quotes.
