Brief Introduction

Vertical roller mill is called vertical mill also. FTM new type vertical mill is developed on the basis of many years of production and development of pulverizers, analyzing and studying the advantages and disadvantages of similar products at home and abroad. The vertical mill adopts advanced material bed grinding and partial external circulation technology, which integrates grinding, grading, drying and conveying. This large-scale advanced high-yield energy-saving grinding product has become the mainstream equipment in the milling industry.

It is suitable for---barite, calcite, potassium feldspar,talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, cement, phosphate rock, gypsum, etc。

Working Principle

The main motor drives the grinding disc to rotate through the reducer, and the fixed grinding roller rotates along the raceway of the grinding disc. The material falls from the feeding port to the center of the grinding disc. Under the action of centrifugal force, the material moves from the center of the grinding disc to the edge at a constant speed. When passing through the grinding raceway, it is crushed by the grinding roller. The grinding force is provided by the hydraulic loading system. The material is directly crushed, and the fine-grained material is squeezed to form a material bed for intergranular crushing.

Drying and grinding are carried out at the same time. The primary hot air enters the surrounding of the grinding disc evenly through the air ring, and the pulverized materials thrown out tangentially from the grinding disc after grinding are dried and transported to the upper powder separator. Under the action of the rotor blades, Coarse particles return to the grinding table for grinding (internal circulation), and the qualified fine powder is milled together with the airflow, and is collected by the system powder collector, which is the finished product.

Contact Us for Video Tour of the Factory

Industry Solutions

Cement Industry

Non-Metallic Mineral Processing

Industrial Solid Waste Recycling

Power Industry

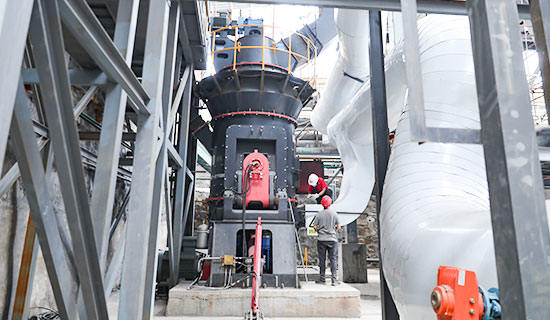

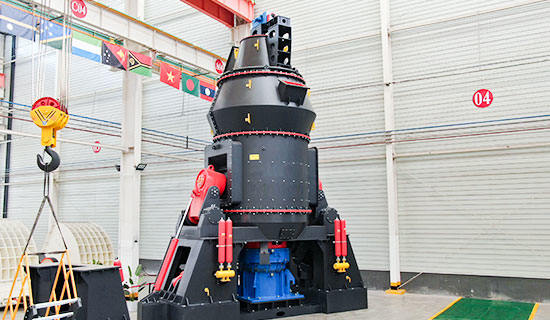

  • HLM Series

    Material picture

    Cement Raw Meal

    HLM Series

    Capacity: 10-260 t/h

    Fineness: 12-15% residue on 80μm sieve

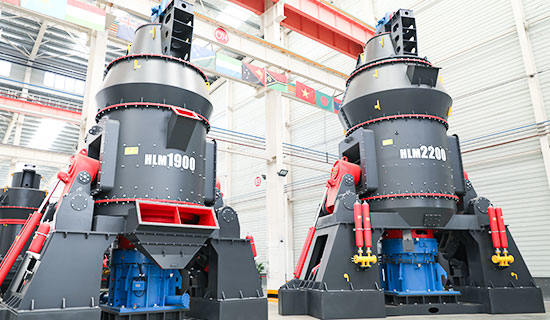

  • HLM Series

    Material picture

    Slag Powder

    HLM Series

    Specific surface area: 380-450 m²/kg

    For high-grade concrete admixture

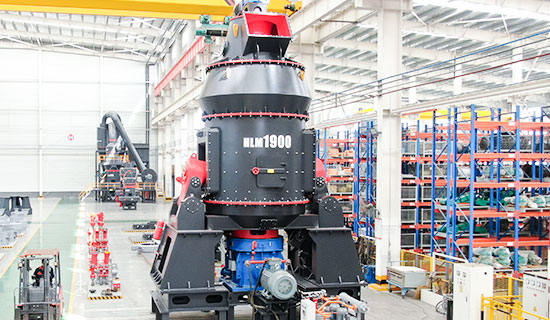

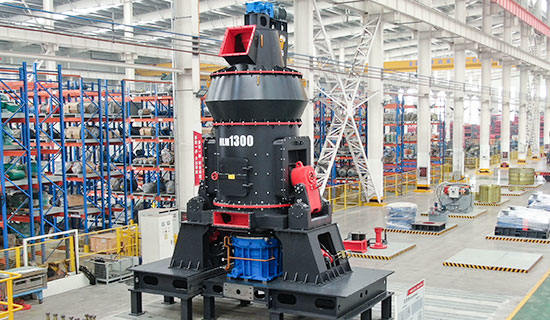

  • HLM Series

    Material picture

    Pulverized Coal

    HLM Series

    Fineness: R0.08=5-15%

    For kiln and precalciner fuel

One machine for multiple applications

30-50% energy saving compared to ball mill

Integrated drying & grinding, handles up to 15% moisture

Get Quote

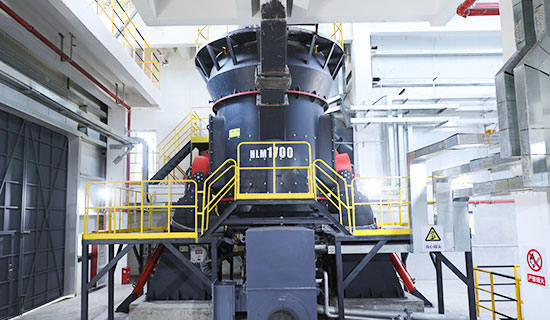

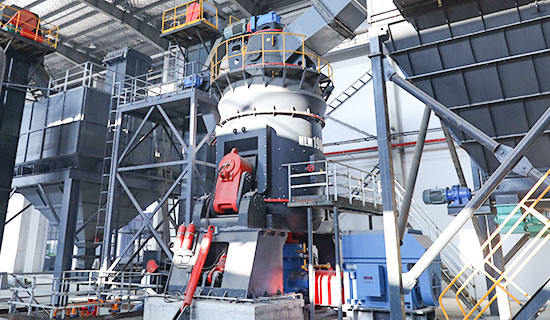

  • HLM Series

    Material picture

    Ultra-fine Powder

    HLM Series

    Fineness: 10-40μm (approx. 400-1250 mesh)

    For high-end fillers

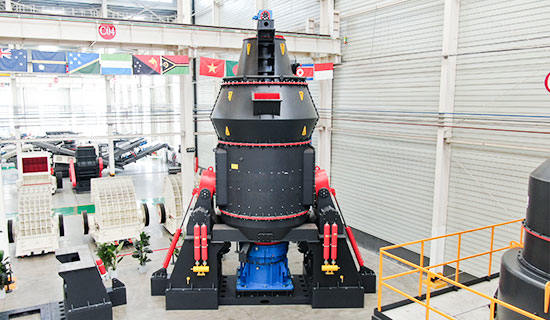

  • HLM Series

    Material picture

    Ground Calcium Carbonate (GCC)

    HLM Series

    Fineness: 200-800 mesh adjustable

    For coatings, paper, plastics

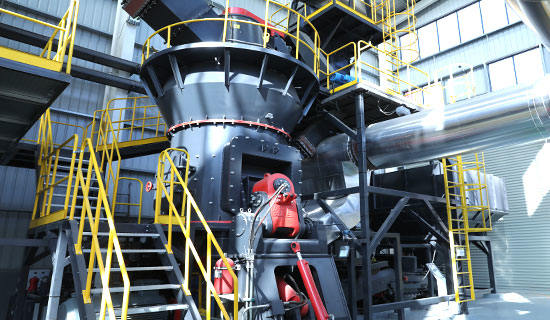

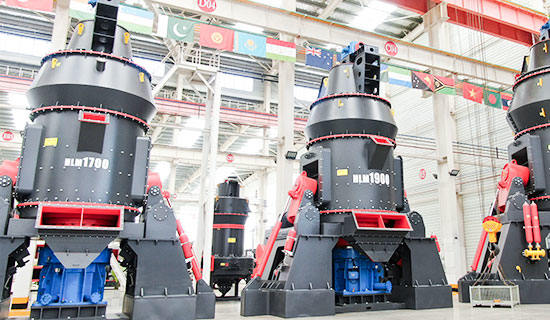

  • HLM Series

    Material picture

    Barite Powder

    HLM Series

    Fineness: 200-325 mesh

    For oil drilling mud weighting agent

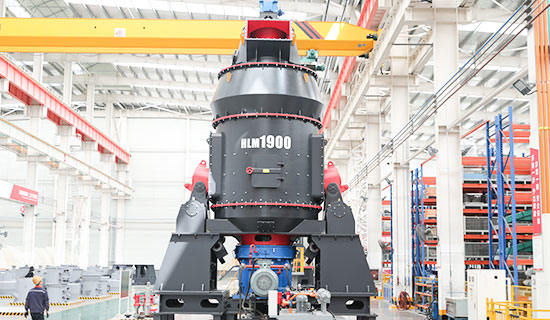

  • HLM Series

    Material picture

    Bentonite

    HLM Series

    Fineness: 200-400 mesh

    For foundry binders, drilling mud

Wide fineness adjustment range (20-400 mesh, up to 1250 mesh for HLM)

High purity processing with clean operation

Stable product quality with narrow particle size distribution

Get Quote
  • HLM Series

    Material picture

    Steel Slag / Blast Furnace Slag

    HLM Series

    Specific surface area: ≥400 m²/kg

    For high-activity mineral admixture

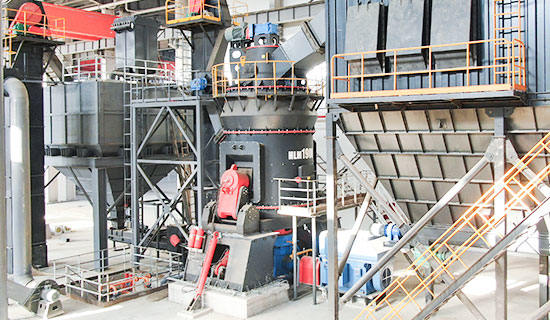

  • HLM Series

    Material picture

    Fly Ash

    HLM Series

    Fineness: 200-400 mesh

    For cement and concrete additive

  • HLM Series

    Material picture

    Phosphogypsum / Desulfurized Gypsum

    HLM Series

    Fineness: 80-200 mesh

    For building gypsum powder

Convert industrial waste into valuable resources

Reduce cement consumption in concrete applications

Contribute to green and sustainable manufacturing

Get Quote
  • HLM Series

    Material picture

    Limestone Powder for FGD

    HLM Series

    Fineness: 200-400 mesh

    For power plant desulfurization

  • HLM Series

    Material picture

    Pulverized Coal for Boilers

    HLM Series

    Fineness: R0.08=5-15%

    For industrial boilers and power plants

Stable fineness control for efficient desulfurization

High drying capacity handles varying moisture content

Reliable 24/7 operation for continuous power generation

Get Quote

Why Choose FTM Vertical Roller Mill?

Need a Customized Solution?

Every industry and project has unique requirements. Our engineering team is ready to provide professional recommendations based on your:

  • Raw material type and characteristics
  • Feed size and moisture content
  • Target fineness or specific surface area
  • Required capacity (t/h)
  • Site conditions and budget
Contact us for a customized
industry solution

Cases and Price

Our Vertical Roller Mill has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote

Service Guarantees

Technical Data

Speifications Capacity (t/h) The finished product fineness The finished product moisture
HLM1300K 10-40 0.84-0.038mm (20-400mesh) ≤1-5%
HLM1500K 13-50
HLM1700K 18-70
HLM1900K 20-85
HLM2200K 35-135
HLM2500K 40-160
HLM2800K 50-200
HLM3200K 60-240
HLM3400K 70-260
HLM3700K 90-320
HLM4200K 110-400
HLM4500K 130-500
HLM4800K 150-600
HLM5600K 220-750

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Note: Processing capacity may vary with different materials and feeding sizes.

Specifications Capacity (t/h) Specific surface area The raw material moisture The finished product moisture
HLM19-2S 8-13 ≥380m²/kg ≤5% ≤1-5%
HLM21-2S 11-18
HLM24-2S 15-20
HLM24-3S 16-24
HLM28-2S 28-35
HLM28S-3S 30-38
HLM32-3S 42-50
HLM35-3S 70-80
HLM42-4S 95-110
HLM46-4S 130-150
HLM53-4S 160-200
HLM56-4S 180-220

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Note: Processing capacity may vary with different materials and feeding sizes.

Specifications Capacity (t/h) Pulverized coal fineness Pulver ized coal moisture
HLM1200M 6-10 R0.08=5-15% ≤1-5%
HLM1300M 10-15
HLM1500M 15-20
HLM1700M 20-30
HLM1900M 26-35
HLM2200M 35-50
HLM2500M 45-55
HLM2800M 60-80
HLM3200M 90-100
HLM3400M 110-135
HLM3700M 145-175
HLM4200M 210-260
HLM4800M 270-330

Note: Raw coal HGI≥55

Note: Processing capacity may vary with different materials and feeding sizes.

Specifications Capacity (t/h) Feed particle size (mm) Product fineness The finished product moisture
HLM1200X 2-6 ≤10 Screen passing rate of 10-40μm 97% ≤1-5%
HLM1300X 3-10 ≤10
HLM1500X 4-13 ≤10
HLM1700X 7-18 ≤15
HLM1900X 8-23 ≤15
HLM2200X 13-35 ≤20
HLM2400X 15-45 ≤20

Note: Mohs hardness grade 4 or below

Note: Processing capacity may vary with different materials and feeding sizes.
