Sand making machine, also known as sand crusher, is widely used to process stones into artificial sand with certain particle size to provide aggregate for building, construction, road, etc.
Production Capacity
10-650t/hInput Size
≤50mmOutput Size
≤5mm

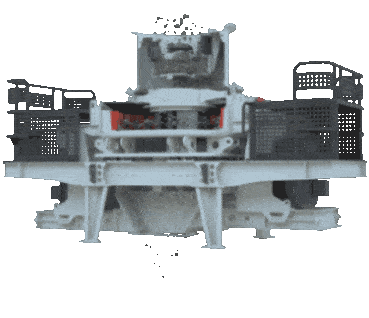

The material falls into the hopper, enters the high-speed rotating rotor through the central feed hole, and is fully accelerated and thrown out through the launch port. It first collides with a part of the free-falling material after rebounding, and then impacts the surrounding vortex cavity together. The materials are firstly bounced to the top of the crushing chamber, and then deflected to move downward, colliding with the material emitted from the impeller runner to form a continuous material curtain, and finally discharged through the lower discharge port .
With deep impeller cavity, the stone throughput is increased by 30%. There is a certain shaping effect, reasonable gradation and adjustable fineness modulus.
The core components are carefully crafted to be more durable, and the service life is extended by 1.5-3 times. At the same time, the hydraulic cover can be opened, which is more convenient for users to view and repair, and the daily maintenance is simple.
Small footprint, combined throwing head, only need to replace the worn piece, reducing the use cost by 30%.
The air flow inside the vortex cavity is self-circulating, working with less dust and low noise, and at the same time, brand-name motors are used, which has sufficient kinetic energy and more energy saving.
VSI7611, VSI8518, well received by market for artificial sand making.
VSI9526, VSI1140, large production capacity and high efficiency.
10-20t/h, 20-30t/h, 30-50t/h, etc, usually for small production scale, with low costs.
60-100t/h, 100-150t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesVSI Sand Making Machine
HVI Sand Making Machine
| Model | Capacity（t/h） | |
| Feed both at center and sides |
Feed at center |
|
| HXVSI-7611 | 80-180 | 40-90 |
| HXVSI-8518 | 140-260 | 70-130 |
| HXVSI-9526 | 200-380 | 100-190 |
| HXVSI-1140 | 300-520 | 160-190 |
| HXVSI-1145 | 350-610 | 180-260 |
| HXVSI-1150 | 360-650 | 190-365 |
| Model | Sand Shaping | Sand Making | Motor Power （kw） |
| Max.Feeding Size （mm） | |||
| HVI 0815 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | 130-278 | 180-356 | 2×160 |
| HVI 1040 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | 320-498 | 370-585 | 2×315 |
Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
As leading manufacturer and supplier in China, we have four large sized modern workshops, more than 500000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.
We provide full and professional service system, including customized solution, fast delivery, spare parts, product warranty, product installation, etc.
with over 200 kinds of small, medium and large heavy processing equipment, such as vertical lathe,edge planer, large boring machine, bending roll, etc.
